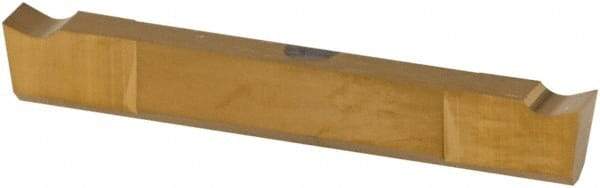

Tungaloy - JCGN200 F J740 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.002" Cnr Rad, TiN Coated
Item #: 78071461
Brand: Tungaloy
Model #: 6804828
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | JCGN |
| Insert Size | 200 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | Micrograin |
| Manufacturer's Grade | J740 |
| Coating | TiN |
| Chipbreaker | F |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Cutting Height (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Holding Method | Clamp |
