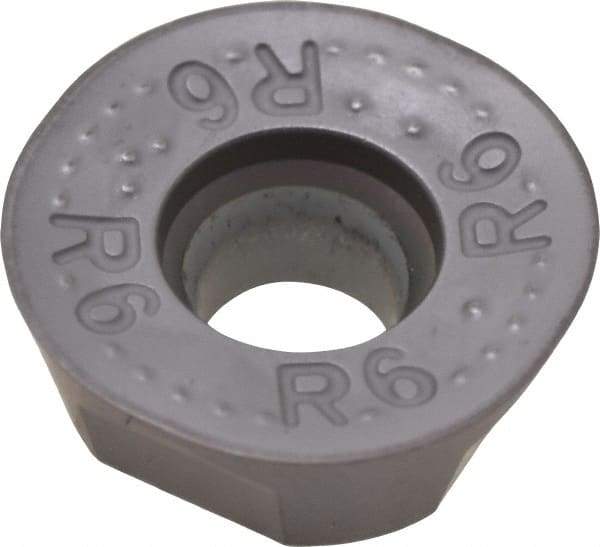

Tungaloy - RDMT1204 MJ Grade AH120 Carbide Milling Insert - TiAlN Finish, 4.76mm Thick, 1/2" Inscribed Circle, 6mm Corner Radius
Item #: 78070638
Brand: Tungaloy
Model #: 6810230
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDMT |
| Insert Size | 1204 |
| Material | Carbide |
| Material Grade | C6/C7 |
| Manufacturer's Grade | AH120 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.5039 |
| Thickness (mm) | 4.76 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | MJ |
| ISO Number | RDMT1204ZDPN-MJ |
