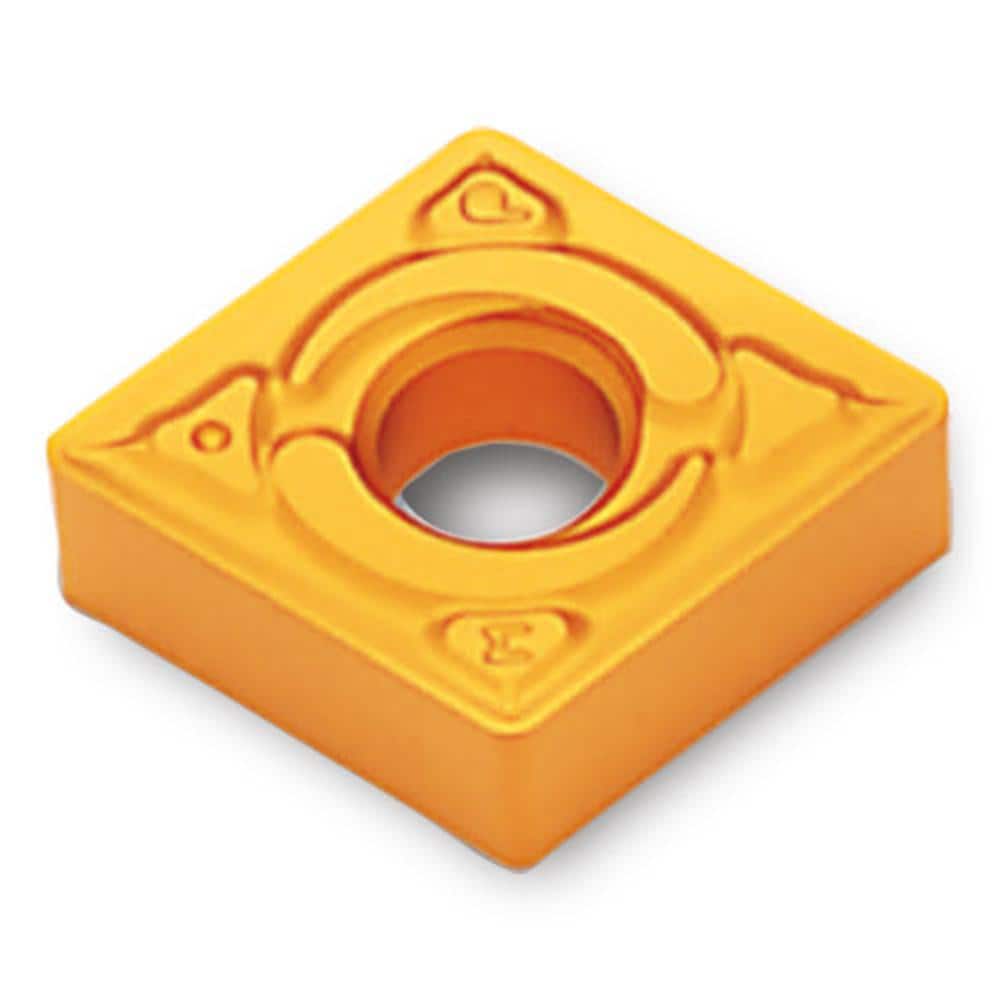

Turning Insert: CNMG433MP TT9235, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.5080″ Long, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 77920809
Brand: Ingersoll Cutting Tools
Model #: 5519804
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9235 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5080 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | CNMG433MPTT9235 |
| Iso Code | CNMG120412MP TT9235 |
| Chip Breaker | MP |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | TiCN; TiN; Al2O3 |
