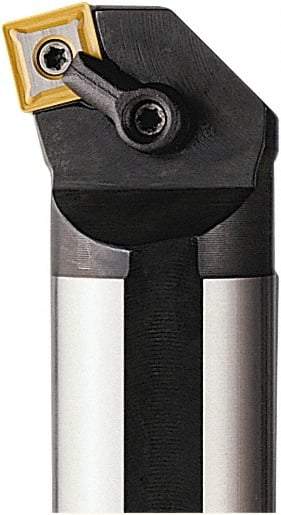

Seco - 63mm Min Bore Diam, 400mm OAL, 50mm Shank Diam, S-MSKN Indexable Boring Bar - 55mm Max Bore Depth, SNM.. 1506.. Insert, Pin & Clamp Holding Method
Item #: 77892800
Brand: Seco
Model #: 18835
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MSKN |
| Series | Multi-Option |
| Minimum Bore Diameter (mm) | 63.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 400.00 |
| Overall Length (Decimal Inch) | 15.7480 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Compatibility | SNM.. 1506.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 75 |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | SNMA 150612; SNMG 150608-M5; SNMG 150612-M1; SNMG 150612-M3; SNMG 150612-M5; SNMG 150612-MR4; SNMG 150612-MR6; SNMG 150612-MR7; SNMG 150616-M5; SNMG 150616-MR6; SNMG 150616-MR7; SNMG 150624-MR6; SNMM 150612-R4; SNMM 150616-R4; SNMM 150624-R7 |
| Toolholder Material | Steel |
