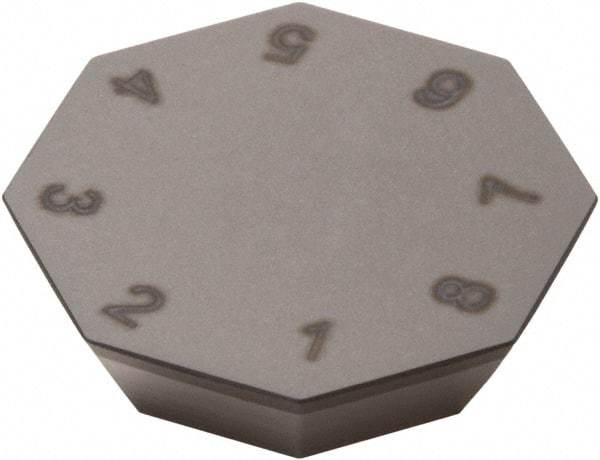

Seco - OFEN070405 MD16 Grade CBN200 CBN Milling Insert - Uncoated, 0.187" Thick, 0.707" Inscribed Circle
Item #: 77891331
Brand: Seco
Model #: 32532
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | OFEN |
| Insert Size | 070405 |
| Material | CBN |
| Manufacturer's Grade | CBN200 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.7070 |
| Inscribed Circle (Decimal Inch) | 0.7070 |
| Thickness (Decimal Inch) | 0.1870 |
| Relief Angle | 25.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | MD16 |
| ISO Number | OFEN 070405TN-MD16-LF |
