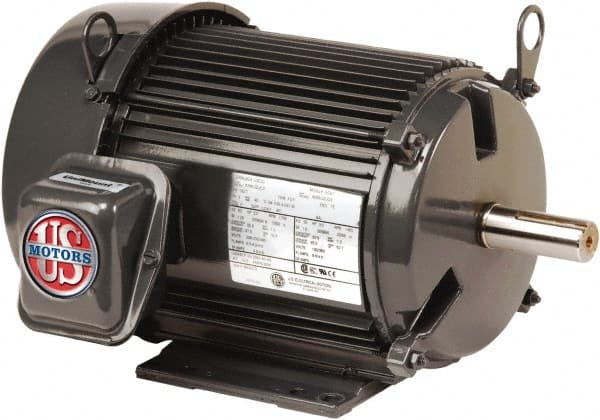

1/2 hp, TEFC Enclosure, No Thermal Protection, 1770, 1460 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 56 Frame, C-Face Mount, 1 Speed, Sealed Ball Bearings, 1.8-1.8/0.9 Full Load Amps, F Class Insulation
Item #: 77653384
Brand: US Motors
Model #: U12P2DCR
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1/2 |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Name Plate RPMs | 1770, 1460 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 56 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Sealed Ball |
| Application | General Equipment |
| Full Load Amperage | 1.8-1.8/0.9 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
