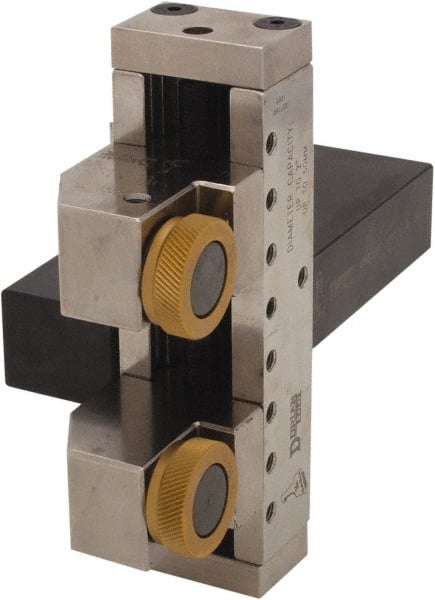

Dorian Tool - 6-13/16 Inch Overall Length x 2-1/2 Inch Overall Width, 1/8 to 2-1/2 Inch Capacity, Right Hand Cut, Scissor and Straddle Type Knurler
Item #: 77629822
Brand: Dorian Tool
Model #: 73310121486
Product Specifications
| Maximum Capacity (Decimal Inch) | 2.5000 |
| Maximum Capacity (Inch) | 2-1/2 |
| Minimum Capacity (Decimal Inch) | 0.1250 |
| Minimum Capacity (Inch) | 1/8 |
| Cutting Direction | Right Hand |
| Knurl Diameter (Inch) | 1 |
| Knurl Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Length (Decimal Inch) | 5.00 |
| Shank Length (Inch) | 5 |
| Knurl Face Width (Inch) | 1/4 |
| Knurl Face Width (mm) | 6.40 |
| Knurl Hole Diameter (Inch) | 1/2 |
| Knurl Hole Diameter (mm) | 12.70 |
| Number of Knurls Required | 2 |
| Knurl Series | SW4 |
| Includes Knurl Wheels | Yes |
| Knurl Patterns Included | Left Hand Diagonal; Right Hand Diagonal |
| Shank Shape | Rectangle |
| Overall Length (Decimal Inch) | 6.8125 |
| Overall Width (Decimal Inch) | 2.5000 |
| Overall Width (Inch) | 2-1/2 |
| Head Length (Decimal Inch) | 1.8120 |
| Head Length (Inch) | 1-13/16 |
| Head Height (Decimal Inch) | 4.88 |
| Head Width (Decimal Inch) | 1.5000 |
| Head Width (Inch) | 1-1/2 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25 |
