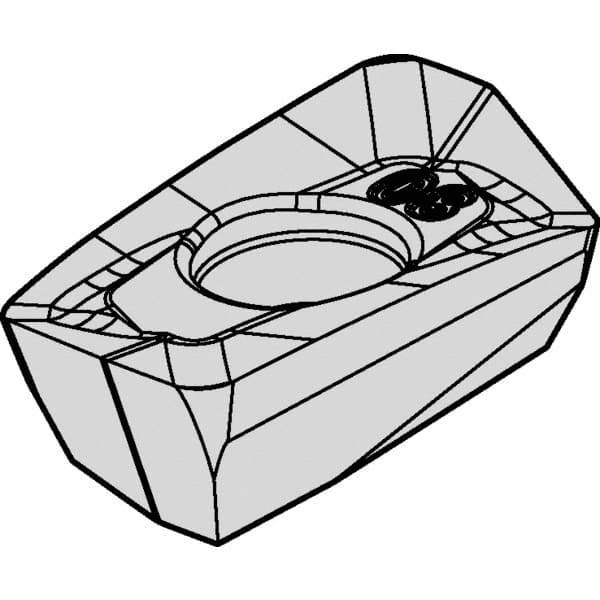

Kennametal - EC1016 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.1476" Thick, 1.6mm Corner Radius
Item #: 77459493
Brand: Kennametal
Model #: 3682782
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1016 |
| Material | Carbide |
| Material Grade | C1/C5/C6 |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Width (Decimal Inch) | 0.2654 |
| Length (Decimal Inch) | 0.4748 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Corner Radius (mm) | 1.60 |
| Coating Process | CVD |
| Shape | Parallelogram |
| ISO Number | EDCT10T316PDERLD |
