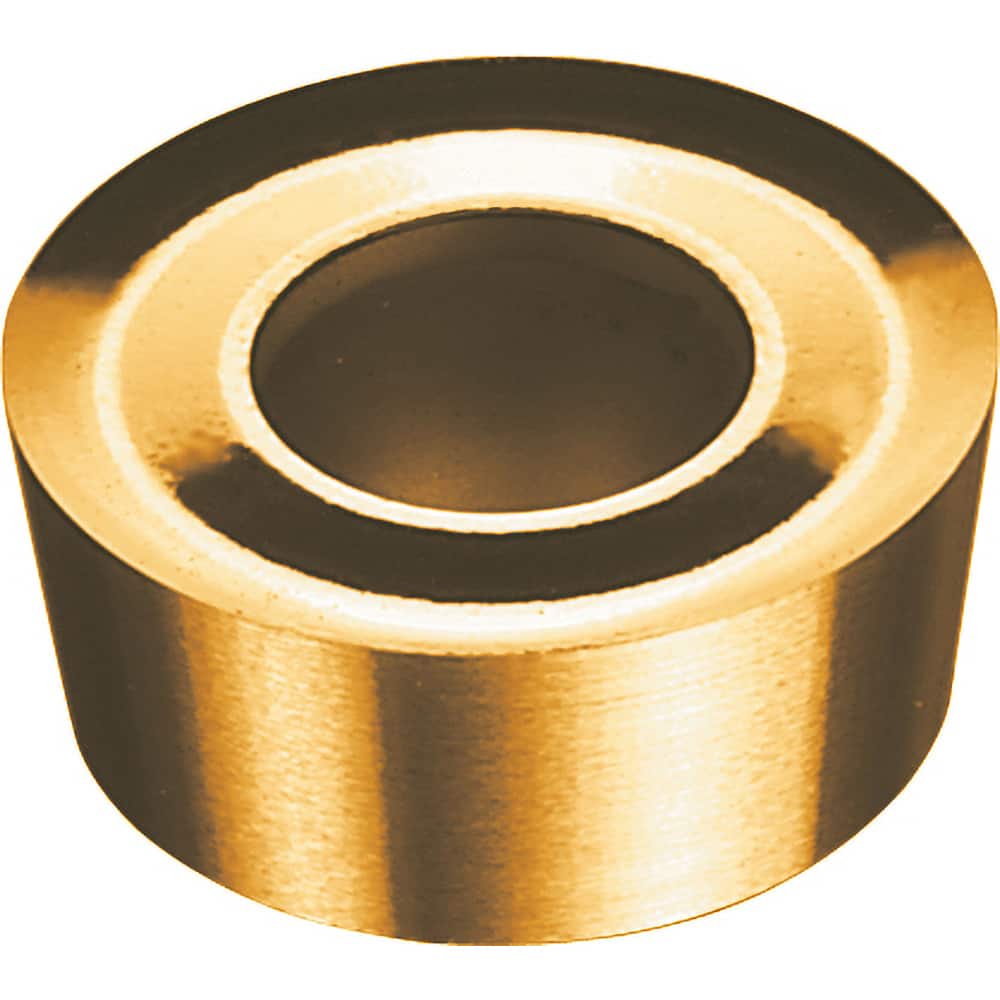

RCGT1204MOFN-ALU AK10 Carbide Turning Insert Uncoated, Neutral, 12mm Inscribed Circle, 4.76mm Thick, Round
Item #: 77356426
Brand: Arno
Model #: 21819
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 1204 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AK10 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; K |
| Iso Code | RCGT 1204MOFN-ALU AK10 |
| Manufacturers Catalog Number | RCGT 1204MOFN-ALU |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Style | RCGT |
| Industry Standard Number | RCGT 1204MOFN-ALU AK10 |
| Width (Mm - 2 Decimals) | 12.00 |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | Machining; Turning |
