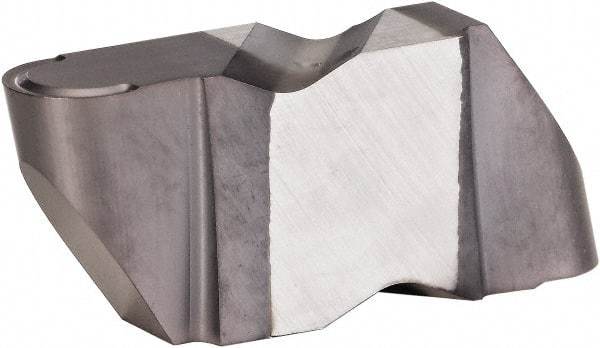

Kennametal - 4094NR K Grade KCU25, 4.78mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Left Hand, 2.39mm Corner Radius, AlTiN Finish
Item #: 77350718
Brand: Kennametal
Model #: 4109923
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NR |
| Insert Size | 4094 |
| Material | Carbide |
| Cutting Width (mm) | 4.78 |
| Cutting Width (Decimal Inch) | 0.1882 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 11.51 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Insert Seat Size | 4 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.39 |
| Corner Radius (Decimal Inch) | 0.0941 |
| Coating Process | PVD |
| Overall Length (mm) | 28.19 |
| Overall Length (Decimal Inch) | 1.1100 |
| Series | Top Notch |
| Overall Width (mm) | 6.50 |
| Overall Width (Decimal Inch) | 0.2560 |
| Included Angle | 55 |
