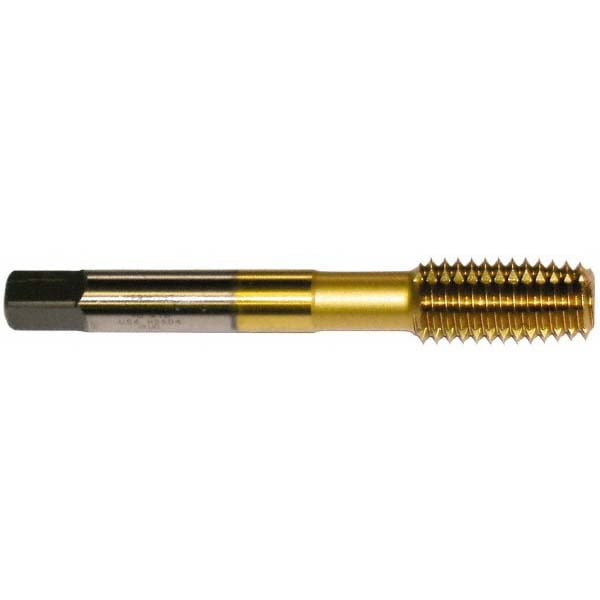

Thread Forming Tap: Metric, Bottoming, High-Speed Steel, Titanium Nitride Coated
Item #: 88218102
Brand: Greenfield Threading
Model #: 291253
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Thread Standard | Metric |
| Chamfer | Bottoming |
| Chamfered Threads | 1.5-2P |
| Material | High-Speed Steel |
| Coating/Finish | Titanium Nitride |
| Coolant Through | No |
| Thread Limit | D9 |
| Overall Length (Decimal Inch) | 2.7188 |
| Overall Length (mm) | 69.06 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 11/16 |
| Thread Length (Decimal Inch) | 0.6875 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.08 |
| Material Application | Non-Ferrous Metal; Steel |
| Application | Blind Hole Threading |
| Series | FTGP |
| Tapping Depth (Decimal Inch) | 1.1250 |
| Tapping Depth (mm) | 28.57 |
| Square Size (Decimal Inch) | 0.2380 |
| Square Size (mm) | 6.05 |
| Material Application Code | P; N |
| UNSPSC Code | 23241600 |
| Country of Origin | VARIOUS |
