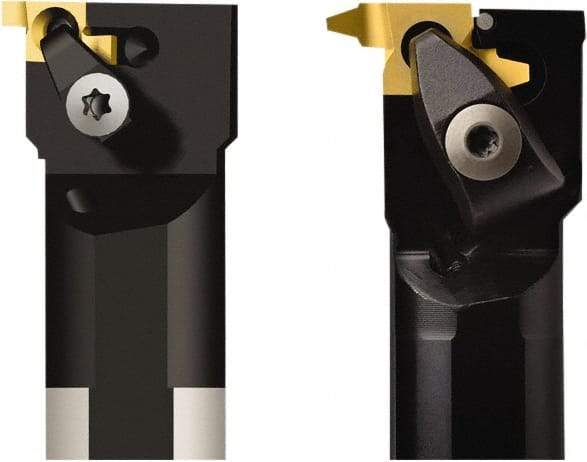

Seco - CN, Internal, Left Hand, 0.139" Max Depth of Cut, 0.12 to 0.139" Groove Width, Indexable Grooving Tool Holder - 14ER Insert Compatibility, 1" Shank Width, 8" OAL
Item #: 76748797
Brand: Seco
Model #: 72582
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1390 |
| Minimum Groove Width (Decimal Inch) | 0.1200 |
| Maximum Groove Width (Decimal Inch) | 0.1390 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | CN |
| Insert Compatibility | 14ER |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 1.3000 |
| Center to Cutting Edge (Decimal Inch) | 0.7000 |
| Complete Insert Compatibility | 14ER .125FG; 14ER .139FG; 14ER 1.5D76; 14ER 1.5R; 14ER 1.6ST; 14ER 1.8DY; 14ER 2.0R; 14ER 2.4DY; 14ER 2.4ST; 14ER 2.65DY |
