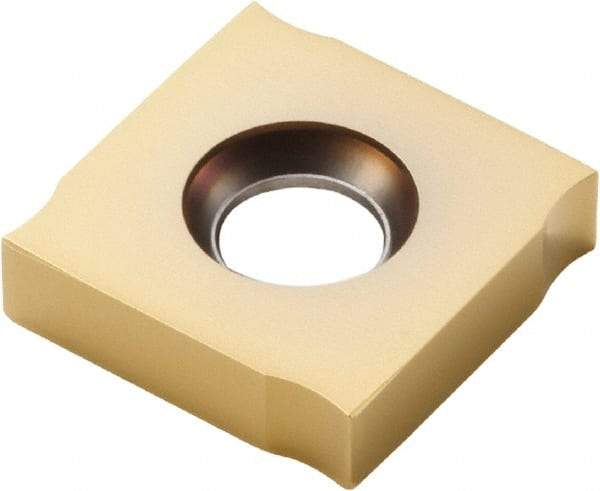

Seco - 335.1912045 M08 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.177" Thick, 1/2" Inscribed Circle
Item #: 76720036
Brand: Seco
Model #: 83748
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 335.19 |
| Insert Size | 12045 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1770 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | M08 |
| ISO Number | 335.19-12045-M08 |
