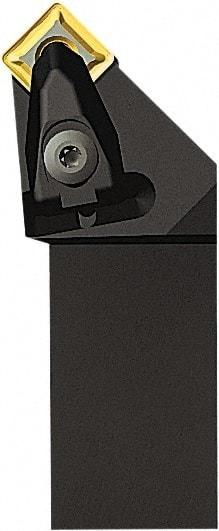

Seco - DSSN, Left Hand Cut, 45° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 181.2mm OAL, SNMG 322 Insert Compatibility, Series Dual Clamp
Item #: 76718477
Brand: Seco
Model #: 34317
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | Dual Clamp |
| Lead Angle | 45 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 181.20 |
| Overall Length (Decimal Inch) | 7.1338 |
| Insert Compatibility | SNMG 322 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Center to Cutting Edge (Decimal Inch) | 1.1811 |
| Head Length (mm) | 42.00 |
| Head Length (Decimal Inch) | 1.6535 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
