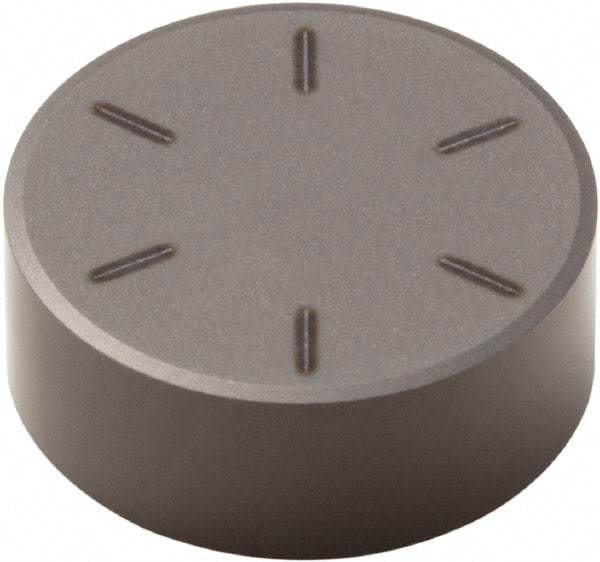

Seco - RNMN22 Grade CBN300 CBN Milling Insert - Uncoated, 1/8" Thick, 1/4" Inscribed Circle
Item #: 76700855
Brand: Seco
Model #: 97851
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | RNMN |
| Insert Size | 22 |
| Material | CBN |
| Manufacturer's Grade | CBN300 |
| Coating | Uncoated |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 0.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Shape | Round |
| Manufacturers Catalog Number | RNMN 22S |
