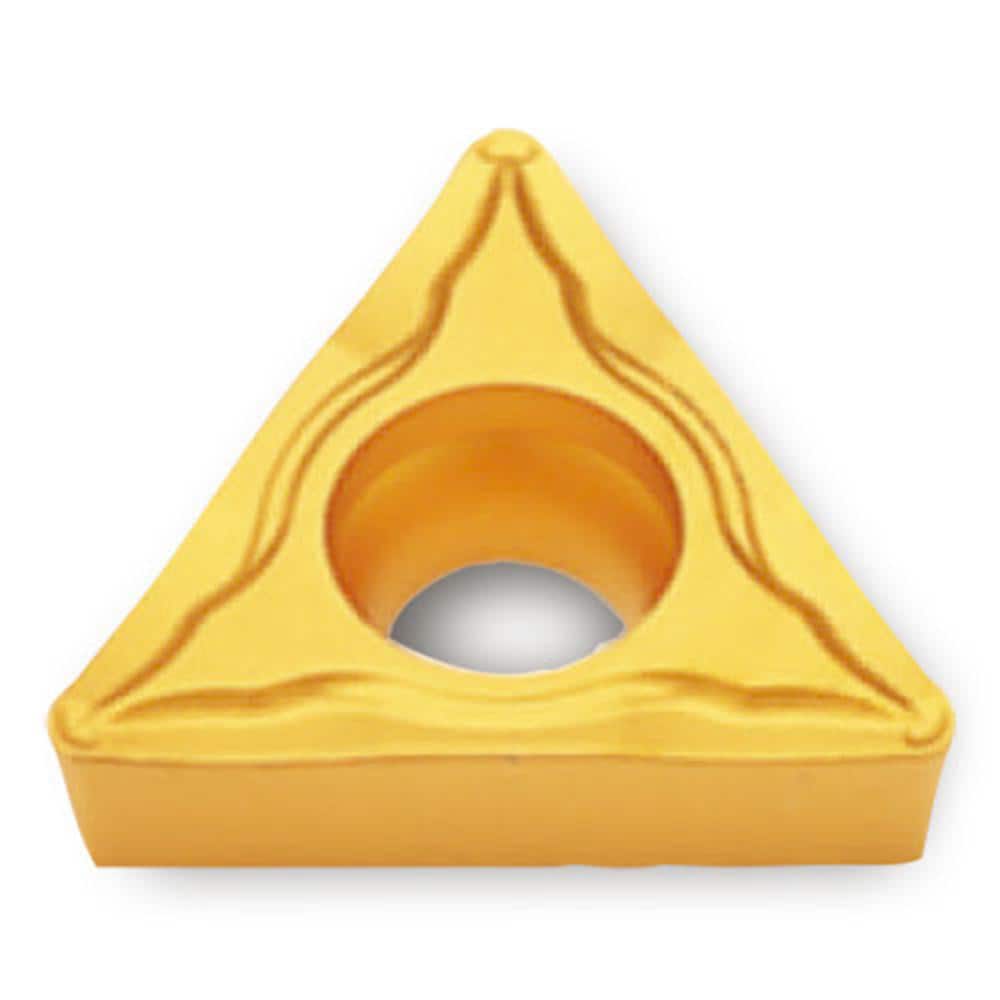

Turning Insert: TCMT21.52FG CT3000, Cermet Uncoated Finish, Neutral, 0.4330″ Long, 1/4″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TCMT
Item #: 76640929
Brand: Ingersoll Cutting Tools
Model #: 5760148
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 21.52 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | CT3000 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | TCMT21.52FGCT3000 |
| Iso Code | TCMT110208FG CT3000 |
| Chip Breaker | FG |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
| Coating/Finish | Uncoated |
