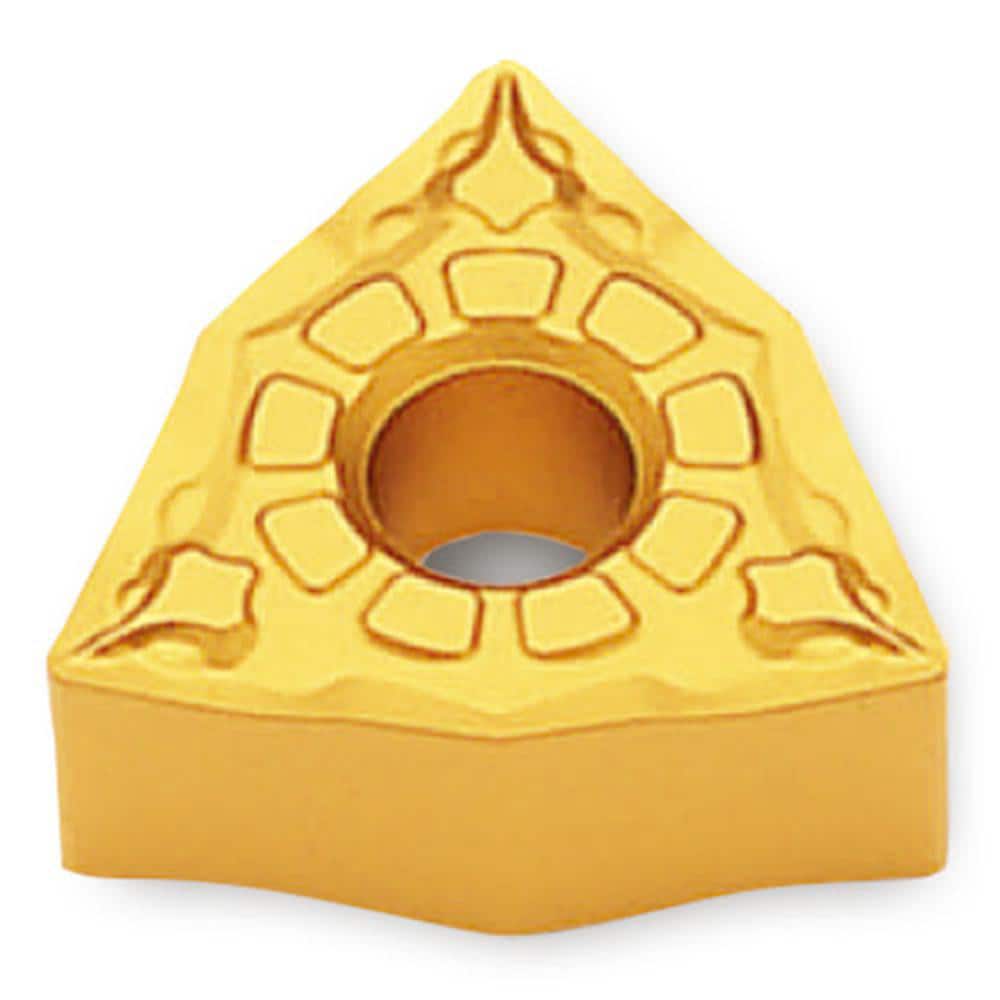

Turning Insert: WNMG332FG PV3010, Cermet TiN Finish, Neutral, 0.2570″ Long, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Trigon, Series WNMG
Item #: 76640804
Brand: Ingersoll Cutting Tools
Model #: 5516067
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 332 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | PV3010 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.2570 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | WNMG332FGPV3010 |
| Iso Code | WNMG060408FG PV3010 |
| Chip Breaker | FG |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiN |
