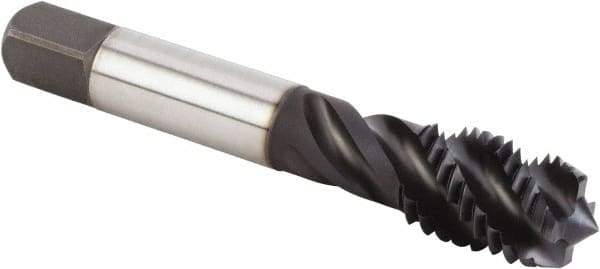

Kennametal - 3/4-10 UNC 4 Flute 2BX Modified Bottoming Spiral Flute Tap - Powdered Metal, TiN/CrC/C Finish, 107.95mm OAL, Right Hand Flute, Right Hand Thread, Series T630
Item #: 76268770
Brand: Kennametal
Model #: 4116780
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/4-10 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2BX |
| Number of Flutes | 4 |
| Material | Powdered Metal |
| Finish/Coating | TiN/CrC/C |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Length (mm) | 107.95 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (mm) | 25.40 |
| Flute Type | Fast Spiral |
| Series/List | T630 |
| Neck Length (Decimal Inch) | 1.0800 |
| Tapping Depth (Decimal Inch) | 2.0800 |
| Tapping Depth (mm) | 52.83 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Shank Diameter (mm) | 14.99 |
| Shank Length (Decimal Inch) | 2.1732 |
| Shank Length (mm) | 55 |
| Material Application | Non-Ferrous Materials; Stainless Steel |
