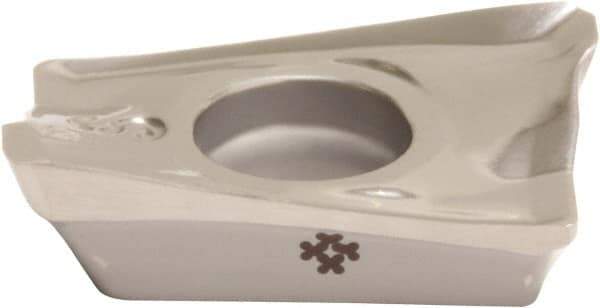

Sumitomo - AXET12 Grade H1 Carbide Milling Insert - 0.138" Thick, 12mm Inscribed Circle
Item #: 76231505
Brand: Sumitomo
Model #: 1433328
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AXET |
| Insert Size | 12 |
| Material | Carbide |
| Manufacturer's Grade | H1 |
| Width (Decimal Inch) | 0.4720 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Decimal Inch) | 0.1380 |
| Corner Radius (mm) | 0.00 |
| Relief Angle | 11.000 |
| Shape | Parallelogram |
