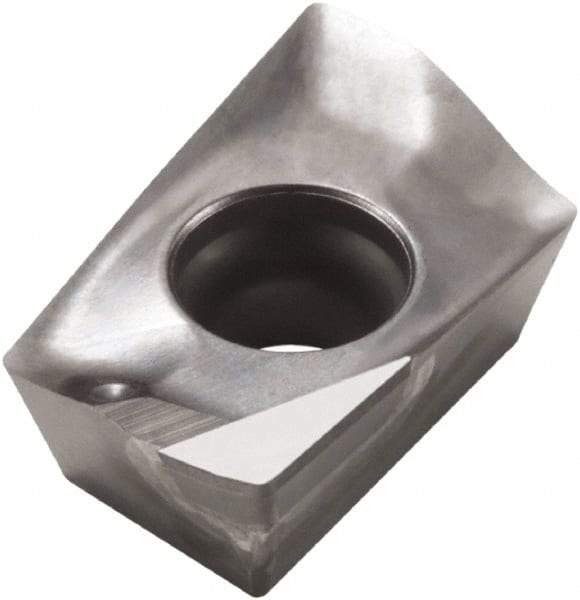

Seco - XOEX120404 Grade PCD20 PCD Milling Insert - Uncoated, 0.199" Thick, 0.016" Corner Radius
Item #: 75228197
Brand: Seco
Model #: 29420
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | XOEX |
| Insert Size | 120404 |
| Material | PCD |
| Manufacturer's Grade | PCD20 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3220 |
| Length (Decimal Inch) | 0.4790 |
| Thickness (Decimal Inch) | 0.1990 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 14.000 |
| Rake Angle | 27 |
| Included Angle | 80 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | XOEX120404FR |
