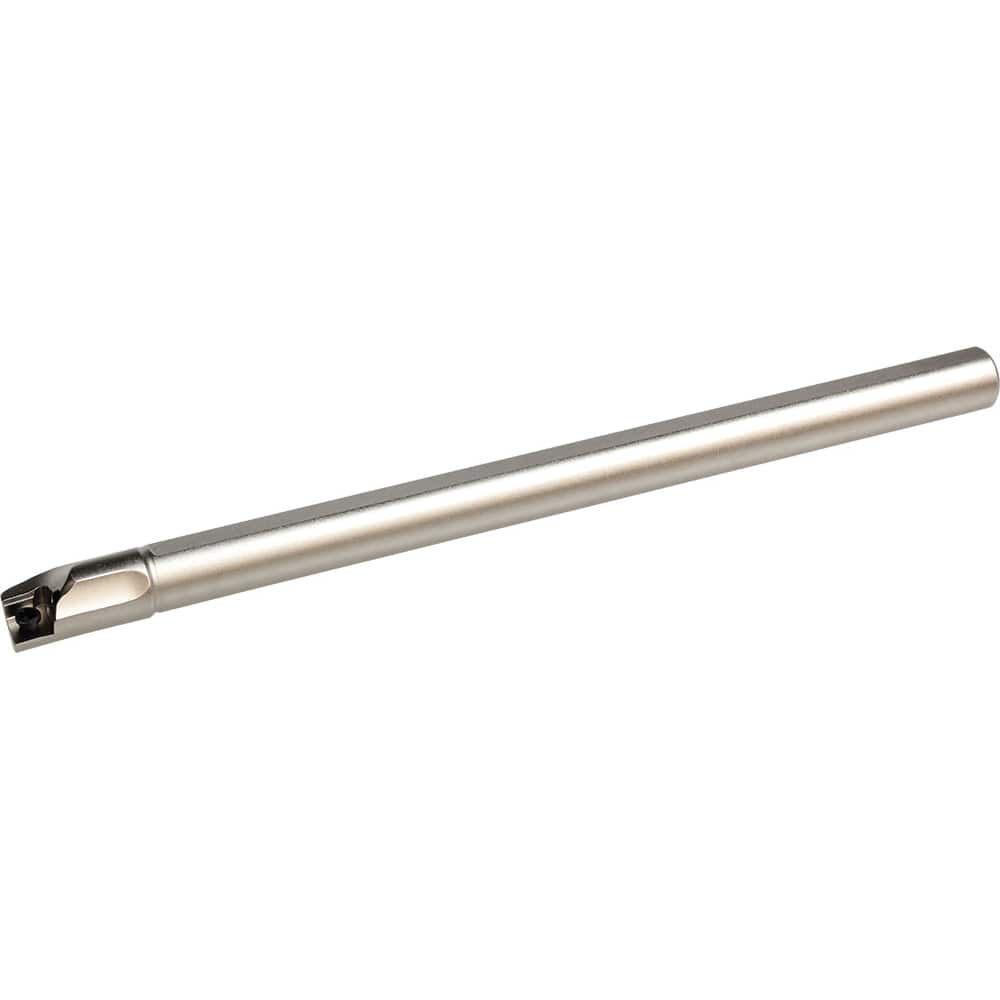

Kyocera - 12.19mm Min Bore, 20mm Max Depth, Right Hand A...SCLC Indexable Boring Bar
Item #: 75149286
Brand: Kyocera
Model #: 8607612
Product Specifications
| Toolholder Style | A...SCLC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 12.190 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 20.00 |
| Overall Length (Inch) | 6 |
| Shank Diameter (Inch) | 0.375 |
| Insert Compatibility | CCGT215?; CCMT215?; CCET215?; CCGW215?; CCMW215? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 5.99 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -12 (Radial);0 (Axial) |
| Coolant Hole Diameter (mm) | 3.00 |
| Toolholder Material | Steel |
