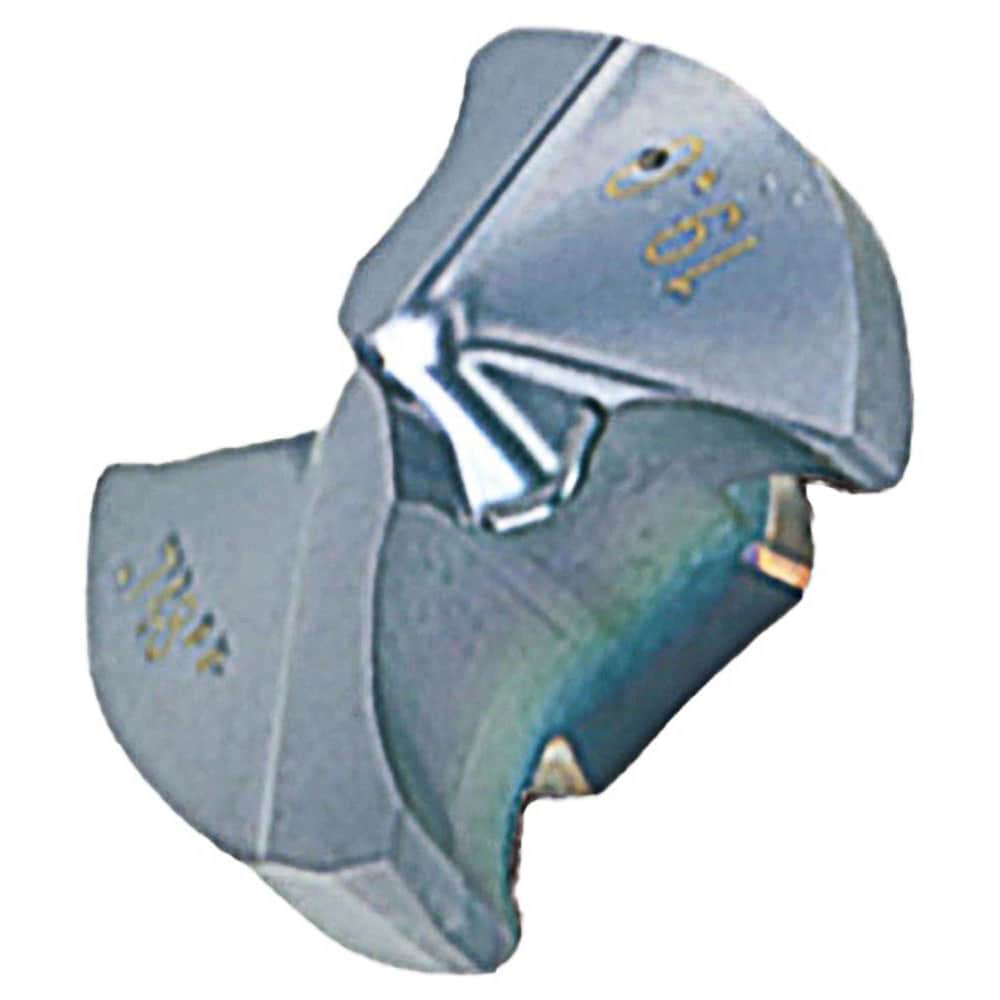

Replaceable Drill Tips: YAB0920R01 IN2005, 9.00 mm Dia, 140 deg Point, IN2005
Item #: 48551022
Brand: Ingersoll Cutting Tools
Model #: 5100217
Product Specifications
| Cutting Diameter (mm) | 9.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2005 |
| Material Grade | P15; P30 |
| Series | YAB |
| Coating Process | PVD |
| Insert Seat Size | 9 |
| Functional Length (Decimal Inch) | 0.1040 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ANSI |
| Height (mm) | 4.00 |
| Overall Length/Projection (Decimal Inch) | 0.1690 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | NXXF36R01 IN2005 |
| Coolant Through | No |
| Flute Length (mm) | 3.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | YAB |
| UNSPSC Code | 23242105 |
| Applications | Spot Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
