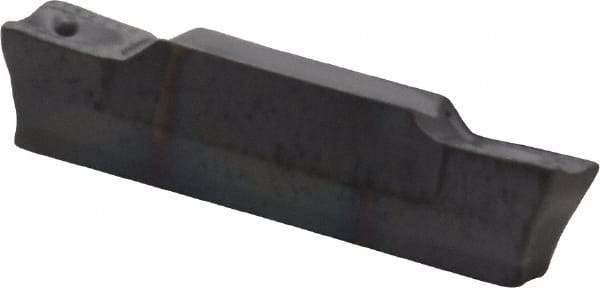

Iscar - 3003HGPL Grade IC908, 3mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Left Hand, 0.3mm Corner Radius, TiAlN Finish
Item #: 75078188
Brand: Iscar
Model #: 6200235
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HGPL |
| Insert Size | 3003 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Recessing; Turning |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Coating Process | PVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6299 |
| Series | Heliface |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
