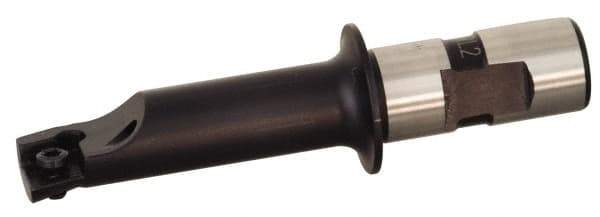

Kennametal - 6mm Min Bore Diam, 54mm OAL, 10mm Shank Diam, SVUBB1 Indexable Boring Bar - 22mm Max Bore Depth, CD.. Insert
Item #: 74837956
Brand: Kennametal
Model #: 2202439
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SVUBB1 |
| Series | Romicron |
| Minimum Bore Diameter (mm) | 6.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.2362 |
| Maximum Bore Depth (mm) | 22.00 |
| Maximum Bore Depth (Decimal Inch) | 0.8661 |
| Overall Length (mm) | 54.00 |
| Overall Length (Decimal Inch) | 2.1300 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Insert Compatibility | CD.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Maximum Bore Diameter (mm) | 9.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.3543 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Complete Insert Compatibility | CD.. 1206..; CD.. S4T0.. |
