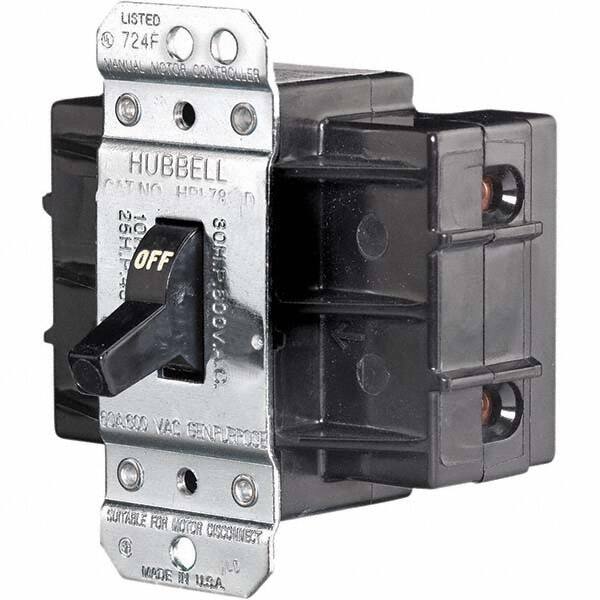

Hubbell Wiring Device-Kellems - Cam & Disconnect Switches; Enclosure Type: Open ; Fused: NonFused ; Horsepower: 10
Item #: 74570433
Brand: Hubbell Wiring Device-Kellems
Model #: HBL7862D
Product Specifications
Cam & Disconnect Switches; Enclosure Type: Open ; Fused: NonFused ; Horsepower: 10 - 20 ; Number of Phases: 3 ; Amperage: 60 ; Contact Form: 2PST
| Enclosure Type | Open |
| Fused | NonFused |
| Horsepower | 10 - 20 |
| Number of Phases | 3 |
| Amperage | 60 |
| Contact Form | 2PST |
| Voltage | 600 VAC |
| Horsepower at 1 Phase | 2 @ 230 V |
| Horsepower at 3 Phase | 60 @ 600 V |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Overall Depth (Inch) | 1.9200 |
| Overall Depth (Decimal Inch) | 1.92 |
| NEMA Enclosure Rating | 0-1 |
| Material | Stainless Steel |
| Overall Height (Decimal Inch) | 3.7800 |
| Overall Width (Decimal Inch) | 3.5400 |
| Standards Met | CSA-C22.2 No.14 Industrial Control File LR-46186; UL 508, Industrial Control File #E70402 |
| Amperage Rating | 60 |
