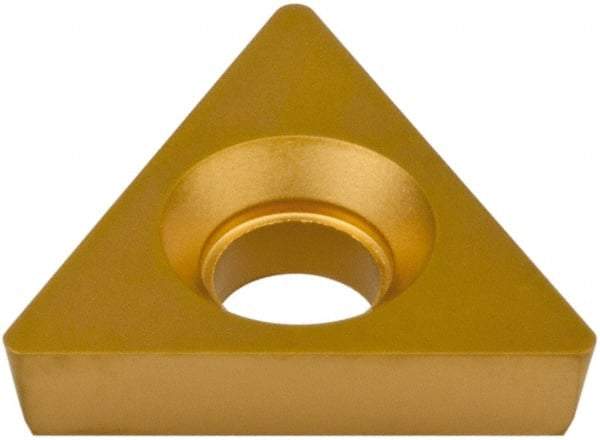

Hertel - TPCB221 Grade HC620B Carbide Boring Insert - TIN/TIC/TICN/TIN Finish, 60° Triangle, 11° Relief Angle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 74160045
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TPCB |
| Insert Size | 221 |
| Material Grade | C7 |
| Manufacturer's Grade | HC620B |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0960 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating | TiN/TiC/TiCN/TiN |
| Relief Angle | 11 |
| Included Angle | 60 |
| Coating Process | CVD |
| Insert Holding Method | Screw |
| Shape | Triangle |
