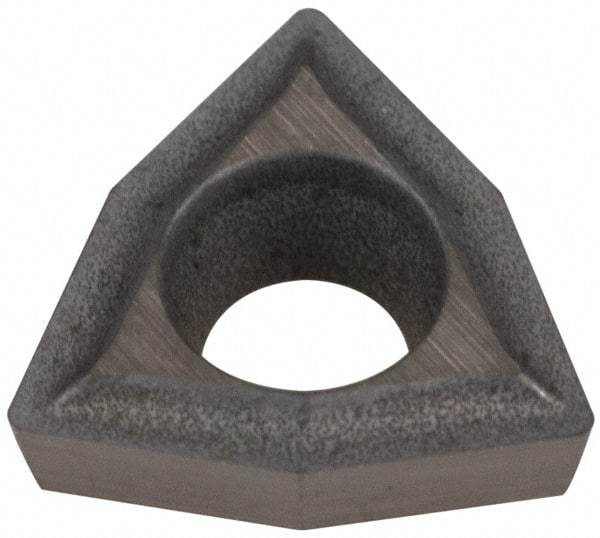

Hertel - WPGT 15105 HF1 HT540B Grade Carbide Boring Insert - Uncoated, Trigon, 80° Incl Angle, 3/16" Inscr Circle, 1/16" Thick, 0.008" Cnr Rad
Item #: 74159799
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WPGT |
| Insert Size | 1.510.5 |
| Material Grade | C1 |
| Manufacturer's Grade | HT540B |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (Decimal Inch) | 0.0625 |
| Thickness (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating | Uncoated |
| Chipbreaker | HF1 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Trigon |
