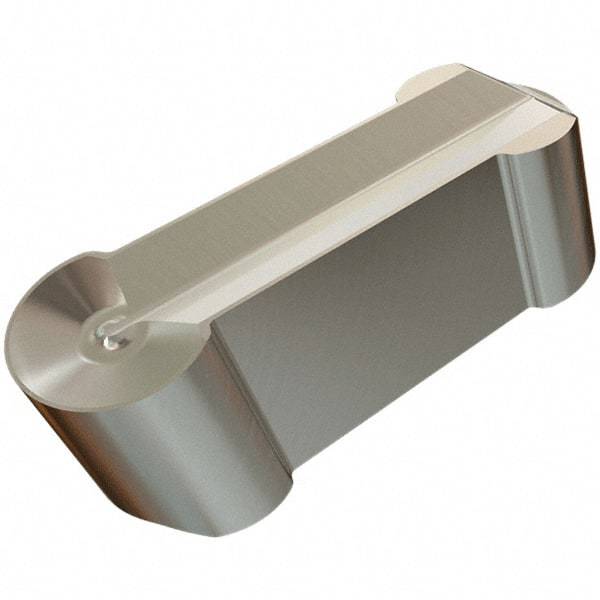

Iscar - 400200GIPA YZ Grade ID5, 4mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 2mm Max Depth of Cut, Neutral, 2mm Corner Radius, Uncoated
Item #: 73900631
Brand: Iscar
Model #: 6404004
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 400200 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | YZ |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Overall Length (mm) | 15.00 |
| Overall Length (Decimal Inch) | 0.5906 |
| Series | Cut Grip |
