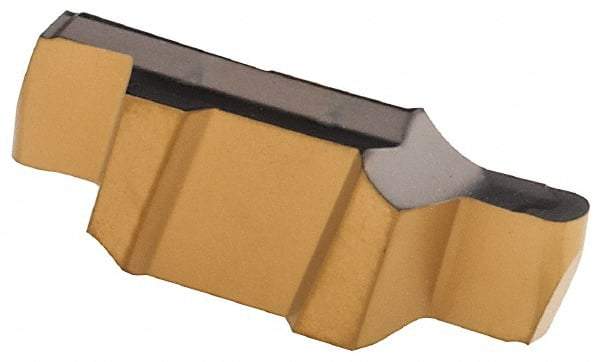

Iscar - 157079GIPI X Grade IC808, 1.57mm Cutting Width Carbide Grooving Insert - 2.8mm Max Depth of Cut, Left Hand, 0.79mm Corner Radius, TiAlN Finish
Item #: 73835803
Brand: Iscar
Model #: 6404143
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 157079 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0618 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Relief Angle | 8 |
| Chipbreaker | X |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
