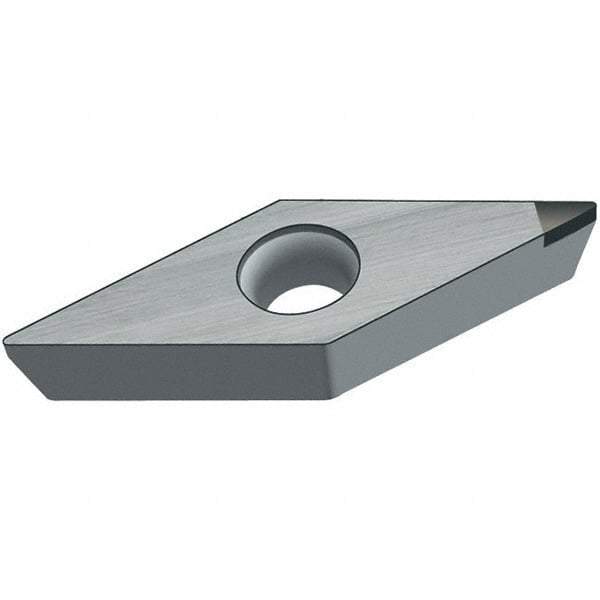

Walter - VBMW331 Grade WCB50 CBN Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 73813354
Brand: Walter
Model #: 5017052
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | VBMW |
| Insert Size | 331 |
| Material | CBN |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WCB50 |
| Coating | Uncoated |
| Material Grade | H10/K10 |
| ISO Number | VBMW160404 |
| Rake | Positive |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBMW331 |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | K |
| Included Angle | 35 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 3.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.1300 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
