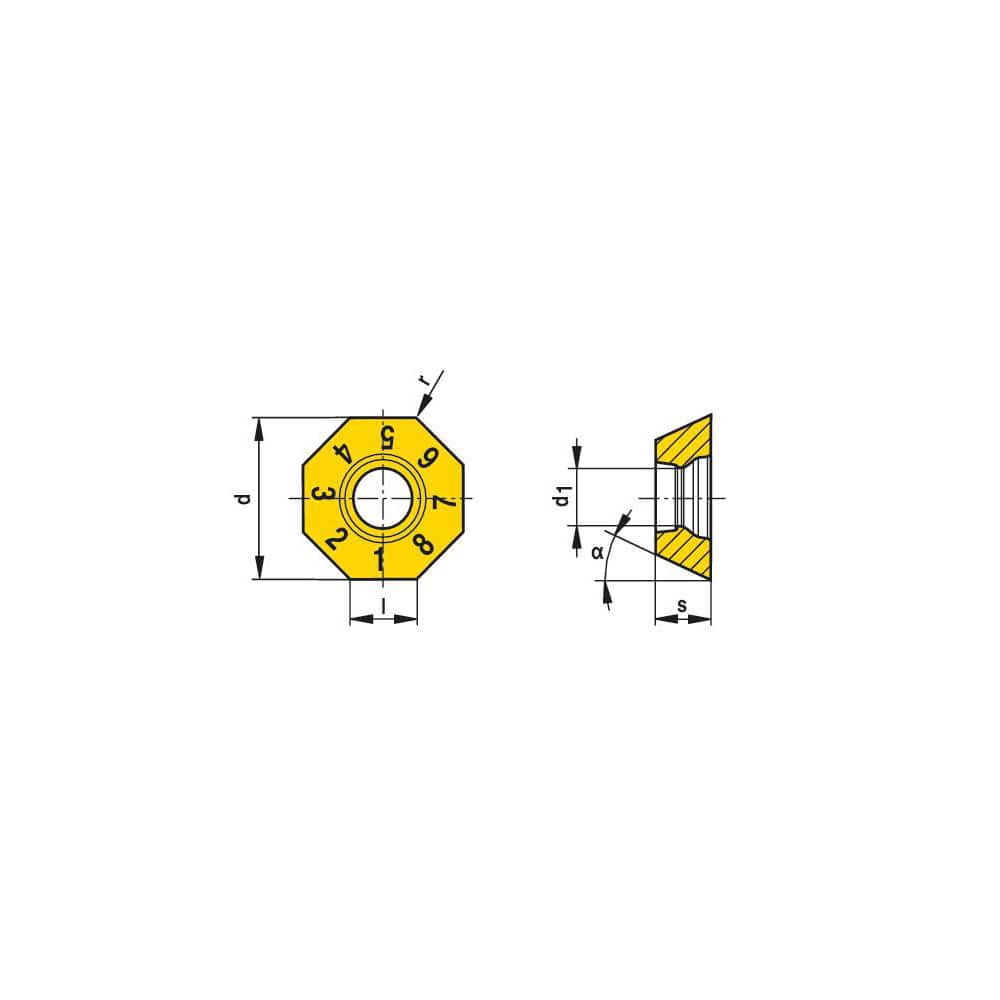

Milling Insert: OFHW 040302EN CTPM245, CTPM245, Solid Carbide N/A Finish,
Item #: 73560724
Brand: Ceratizit
Model #: 51105452
Product Specifications
| Insert Style | OFHW |
| Insert Size Code | 0403 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM245 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Neutral |
| Relief Angle | 25.00 |
| Series | OFHW |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1319 |
| Maximum Depth of Cut (Decimal Inch) | 0.0323 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1551 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | OFHW 040302EN CTPM245 |
| Iso Code | OFHW 040302EN CTPM245 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
