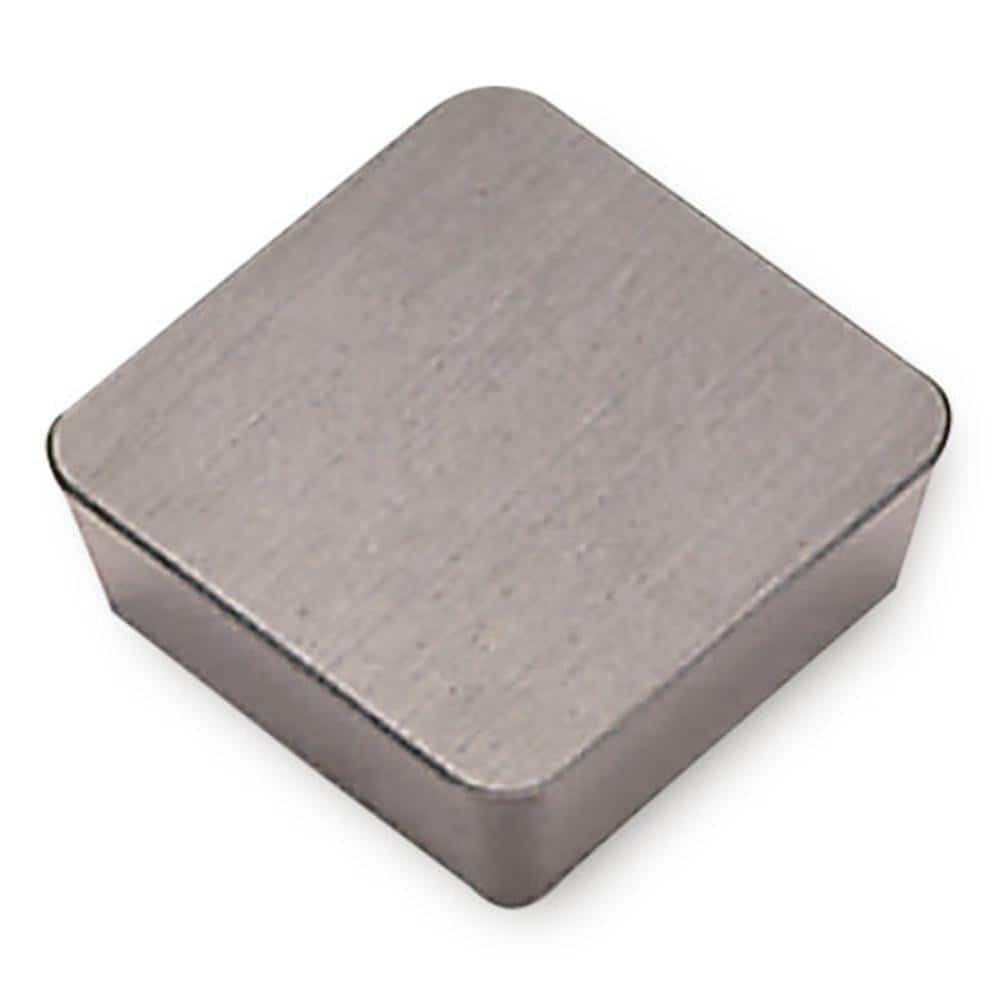

Turning Insert: SPG422 C-5, Solid Carbide Uncoated Finish, Neutral, 0.4690″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 90.0 ° N/A Square, Series SPG
Item #: 73462152
Brand: Ingersoll Cutting Tools
Model #: 5502502
Product Specifications
| Insert Style | SPG |
| Insert Shape Code | S |
| Insert Size Code | 422 |
| Insert Shape | Square |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | P30 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 90.0 |
| Relief Angle | 11 |
| Series | SPG |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4690 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | SPG422C5 |
| Iso Code | SPGN120308 P30 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | Uncoated |
