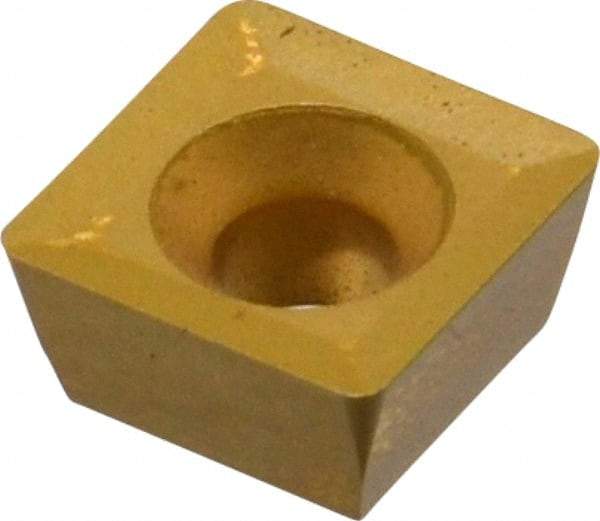

Interstate - SPEH332 Grade ICP55M Carbide Milling Insert - TiN/TiC/TiCN/TiN Finish, 3/16" Thick, 3/8" Inscribed Circle, 1/32" Corner Radius
Item #: 73025355
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPEH |
| Insert Size | 332 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | ICP55M |
| Coating | TiN/TiC/TiCN/TiN |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| ISO Number | SPEH332P |
