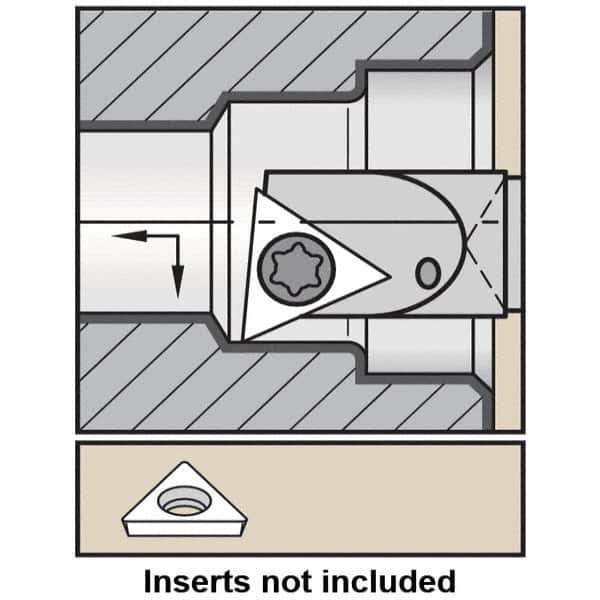

Kennametal - 7.51mm Min Bore Diam, 3" OAL, 12mm Shank Diam, A-STL-S Indexable Boring Bar - 31.75mm Max Bore Depth, TD.. 07T1202 Insert, Screw Holding Method
Item #: 72428816
Brand: Kennametal
Model #: 1289155
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STL-S |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 7.51 |
| Minimum Bore Diameter (Decimal Inch) | 0.2957 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 31.75 |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 76.20 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TD.. 07T1202 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 3.96 |
| Center to Cutting Edge (Decimal Inch) | 0.1559 |
| Rake Angle | 5 |
| Coolant Hole Diameter (mm) | 1.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0394 |
| Complete Insert Compatibility | TD.. 07T1202 |
| Toolholder Material | Steel |
