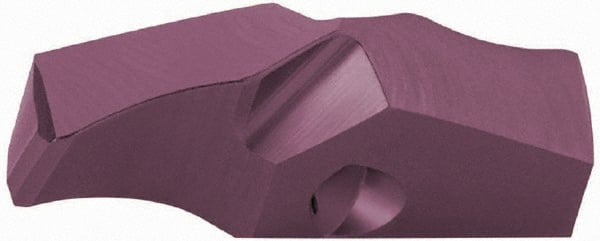

2485 57/64″ 140D FIREX Carbide Replaceable Tip Drill TiN/TiAlN Finish, 140° Included Angle, 57/64″ Diam, 10mm High, Through Coolant, Series 2485
Item #: 72307440
Brand: Guhring
Model #: 9024850226200
Product Specifications
| Diameter (Decimal Inch) | 0.8906 |
| Point Angle | 140 |
| Diameter (Inch) | 57/64 |
| Diameter (mm) | 22.62 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | FIREX |
| Material Grade | K20/K40 |
| Cutting Direction | Right Hand |
| Series | 2485 |
| Insert Geometry | Relieved Cone |
| Insert Seat Size | 3.1 |
| Functional Length (mm) | 10.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 10.00 |
| Coolant Through | Yes |
| Applications | Heat-Treatable Steel |
| Coating/Finish | TiN; TiAlN |
| Width (Mm - 2 Decimals) | 6.30 |
| Included Angle Degree | 140 |
