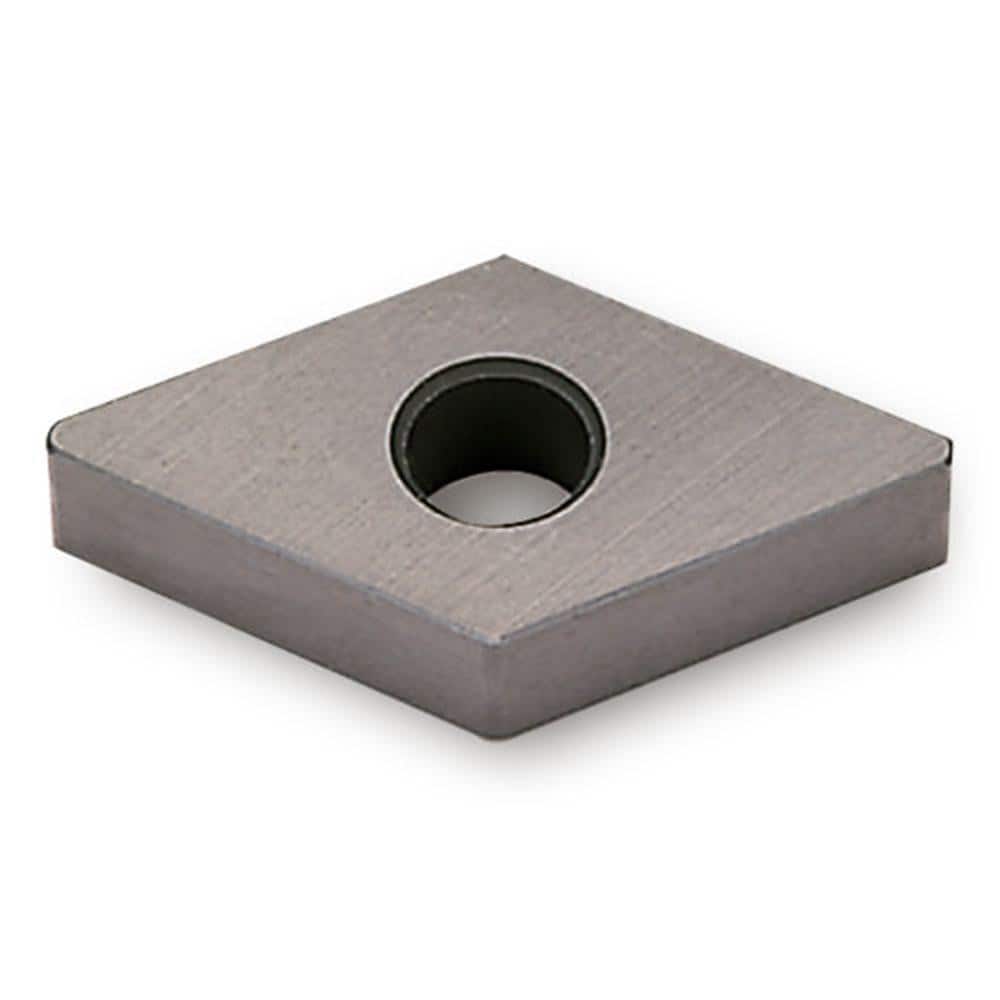

DNGA150408 AB2010 Ceramic Turning Insert 3/16″ Thick, 55° Diamond
Item #: 72105463
Brand: Ingersoll Cutting Tools
Model #: 5702685
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | AB2010 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6100 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron; Hardened Steel |
| Primary Workpiece Material Code | H; K |
| Ansi Code | DNGA432AB2010 |
| Iso Code | DNGA150408 AB2010 |
| Chip Breaker | A |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | TiCN; TiN; Al2O3 |
