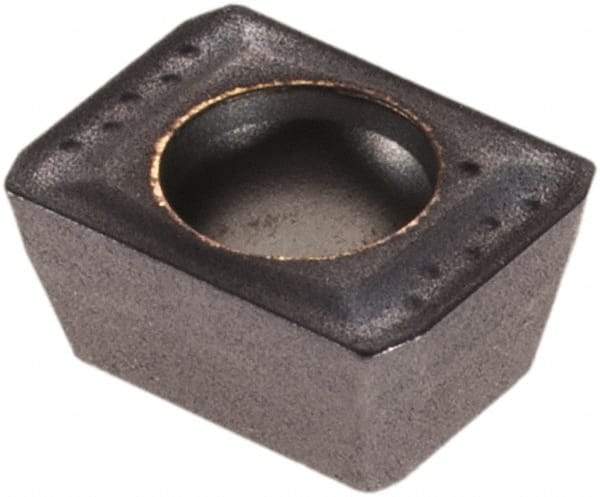

Walter - LCMX050203 E57 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Rectangle
Item #: 71723795
Brand: Walter
Model #: 5020942
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 050203 |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Thickness (mm) | 2.38 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Shape | Rectangle |
| Width (Decimal Inch) | 0.1575 |
| Width (mm) | 4.00 |
| Length (mm) | 5.20 |
| Length (Decimal Inch) | 0.2047 |
| Coating | TiCN |
| Coating Process | PVD |
| Chipbreaker | E57 |
