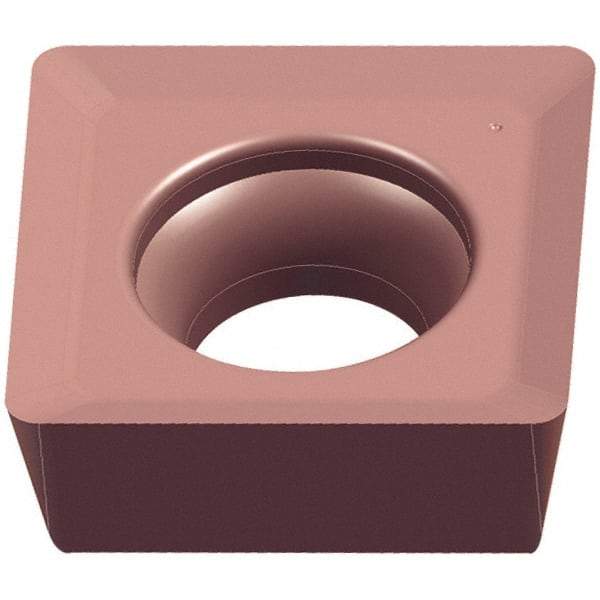

Walter - SPHT060304 G88 Grade WXN15 Carbide Milling Insert - TiCN Plus Finish, 0.1252" Thick, 1/4" Inscribed Circle, 0.4mm Corner Radius
Item #: 71719918
Brand: Walter
Model #: 5169050
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPHT |
| Insert Size | 060304 |
| Material | Carbide |
| Material Grade | N15 |
| Manufacturer's Grade | WXN15 |
| Coating | TiCN Plus |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | G88 |
| Manufacturers Catalog Number | SPHT060304-G88 |
