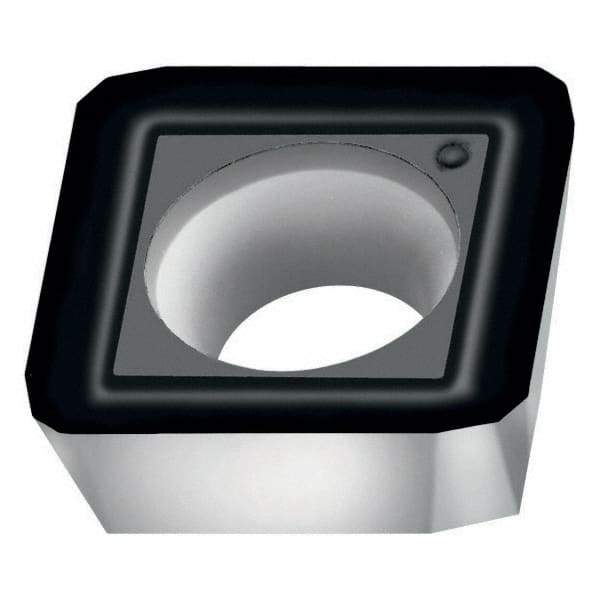

Walter - SPGT1204 F55 Grade WAK15 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.1874" Thick, 1/2" Inscribed Circle, 0.5mm Corner Radius
Item #: 71711592
Brand: Walter
Model #: 5015841
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGT |
| Insert Size | 1204 |
| Material | Carbide |
| Material Grade | K15 |
| Manufacturer's Grade | WAK15 |
| Coating | TiCN/Al2O3/TiN |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | F55 |
| Manufacturers Catalog Number | SPGT1204EDR-F55 |
