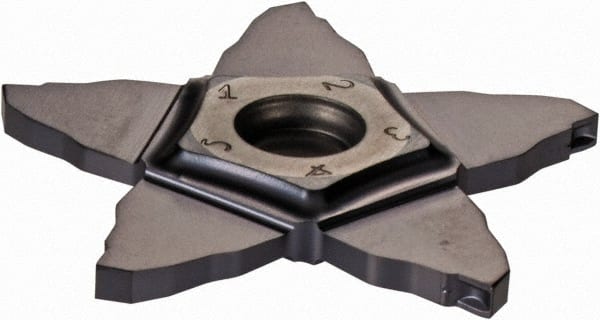

Iscar - PENTA 34N200C020 Carbide Grooving Insert
Item #: 71428395
Brand: Iscar
Model #: 6003537
Product Specifications
| Insert Style | PENTA |
| Insert Size | 34N200 |
| Material | Carbide |
| Cutting Width (mm) | 2.01 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Multi-Use Application | Grooving; Parting |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Series | PentaCut |
| Rake | Positive |
| ISO Number | PENTA 34N200C020 |
| Manufacturers Catalog Number | PENTA 34N200C020 |
| Overall Width (Decimal Inch) | 0.1690 |
| Series Number | PentaCut |
| Insert Holding Method | Screw |
| Corner Radius (Inch) | 0.0080 |
