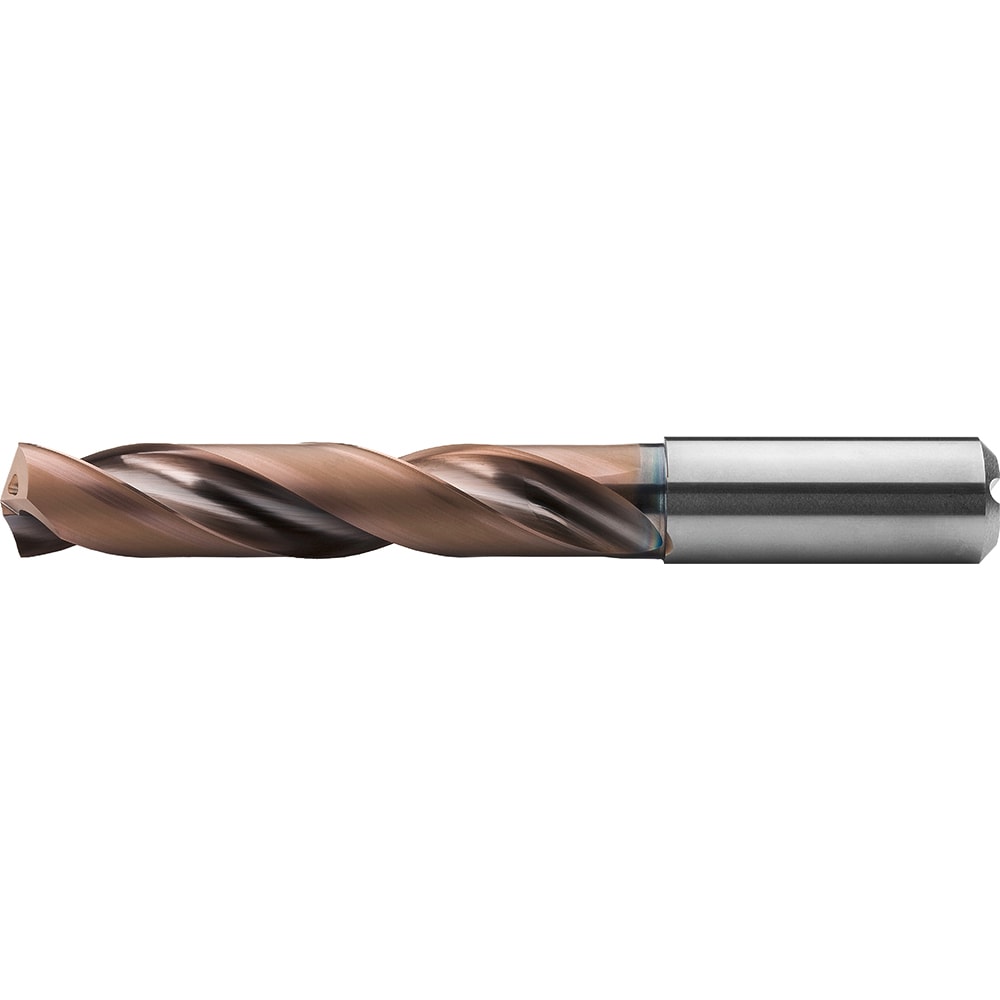

Extra Length Drill Bit: 0.3320", 140 °, Carbide
Item #: 04781738
Brand: Mitsubishi
Model #: 601949
Product Specifications
| Drill Bit Size (mm) | 8.43 |
| Overall Length (mm) | 114.5300 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 61.54 |
| Point Type | X-Thinning |
| Series | MMS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3320 |
| Drill Point Length (mm) | 1.52 |
| Drill Point Length (Decimal Inch) | 0.0600 |
| Overall Length (Decimal Inch) | 4.5090 |
| Shank Diameter (Decimal Inch) | 0.394 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (Decimal Inch) | 2.0080 |
| Shank Length (mm) | 51.000 |
| Flute Length (Decimal Inch) | 2.4230 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.7200 |
| Maximum Drilling Depth (mm) | 43.69 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
