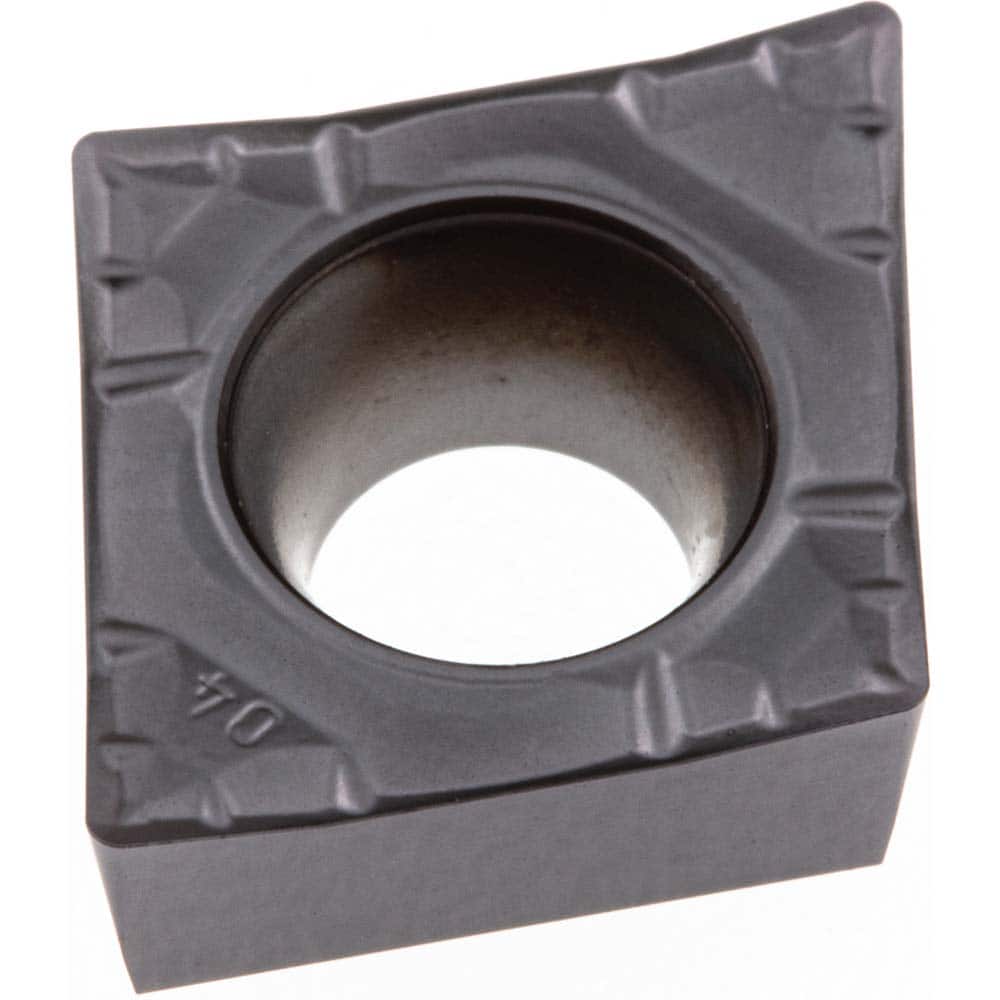

CCGT21.50.5FN-ALU AK10 Carbide Turning Insert Uncoated, Neutral, 6.45mm Long, 6.35mm Inscribed Circle, 0.2mm Corner Radius, 2.38mm Thick, 80° Diamond
Item #: 70808233
Brand: Arno
Model #: 12210
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 060202 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AK10 |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Maximum Depth of Cut (mm) | 2.00 |
| Inscribed Circle (mm) | 6.35 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (mm) | 6.45 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; K |
| Iso Code | CCGT 060202FN-ALU AK10 |
| Manufacturers Catalog Number | CCGT 060202FN-ALU |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Style | CCGT |
| Industry Standard Number | CCGT 060202FN-ALU AK10 |
| Width (Mm - 2 Decimals) | 6.35 |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | Machining; Turning |
 | |
| MSC Part # | 70808233 |
| Mfr Part # | 12210 |
| Country of OriginCountry of Origin is subject to change | Germany |
