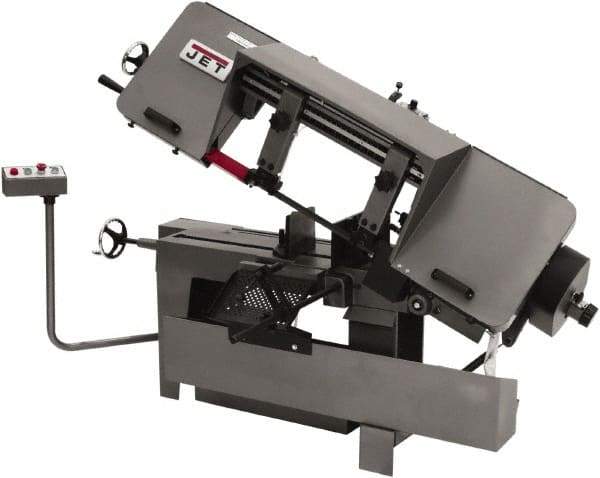

Jet - 9 x 16" Max Capacity, Manual Variable Speed Pulley Horizontal Bandsaw - 100 to 350 SFPM Blade Speed, 460 Volts, 45°, 3 Phase
Item #: 70762653
Brand: Jet
Model #: 414499
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Variable Speed Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 9 x 16 |
| Maximum Capacity (Rounds) (Inch) | 10 |
| Phase | 3 |
| Voltage | 460 |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Speeds (SFPM) | 100 to 350 |
| Blade Length (Inch) | 135 |
| Blade Thickness (Decimal Inch) | 0.0350 |
