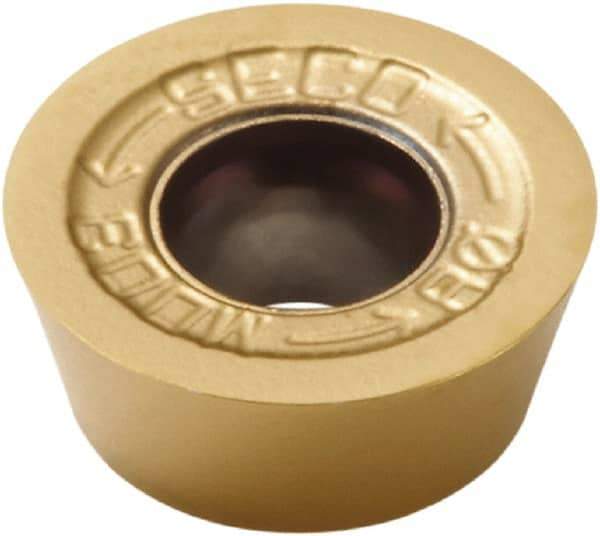

Seco - RDKW0803M0 MD05 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 1/8" Thick, 0.315" Inscribed Circle
Item #: 70495262
Brand: Seco
Model #: 20331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDKW |
| Insert Size | 0803M0 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 15.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Round |
| Chipbreaker | MD05 |
| ISO Number | RDKW 0803M0T-MD05 |
