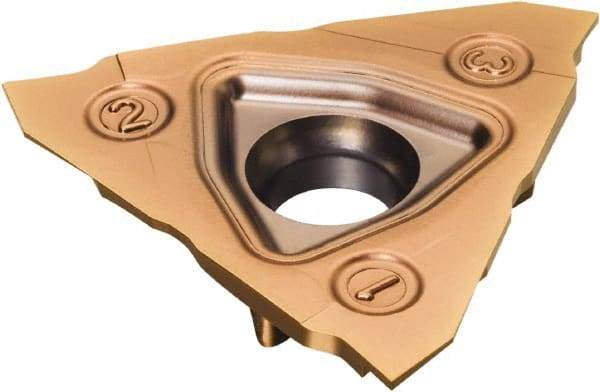

Sandvik Coromant - TN123 GS Grade 1125, 0.6mm Cutting Width Carbide Grooving Insert - 1/16" Max Depth of Cut, Neutral, TiAlN Finish
Item #: 70205992
Brand: Sandvik Coromant
Model #: 5736567
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | T |
| Material | Carbide |
| Cutting Width (mm) | 0.60 |
| Cutting Width (Decimal Inch) | 0.0236 |
| Maximum Depth of Cut (mm) | 1.60 |
| Maximum Depth of Cut (Inch) | 1/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.73 |
| Cutting Height (Decimal Inch) | 0.1470 |
| Relief Angle | 7 |
| Insert Seat Size | T |
| Chipbreaker | GS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Coating Process | PVD |
| Overall Length (mm) | 10.40 |
| Overall Length (Decimal Inch) | 0.4094 |
| Series | CoroCut 3 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123T3-0060-0000-GS 1125 |
| Manufacturers Catalog Number | N123T3-0060-0000-GS 1125 |
| Overall Width (mm) | 0.60 |
| Overall Width (Decimal Inch) | 0.0236 |
| Insert Thickness (Decimal Inch) | 0.1469 |
