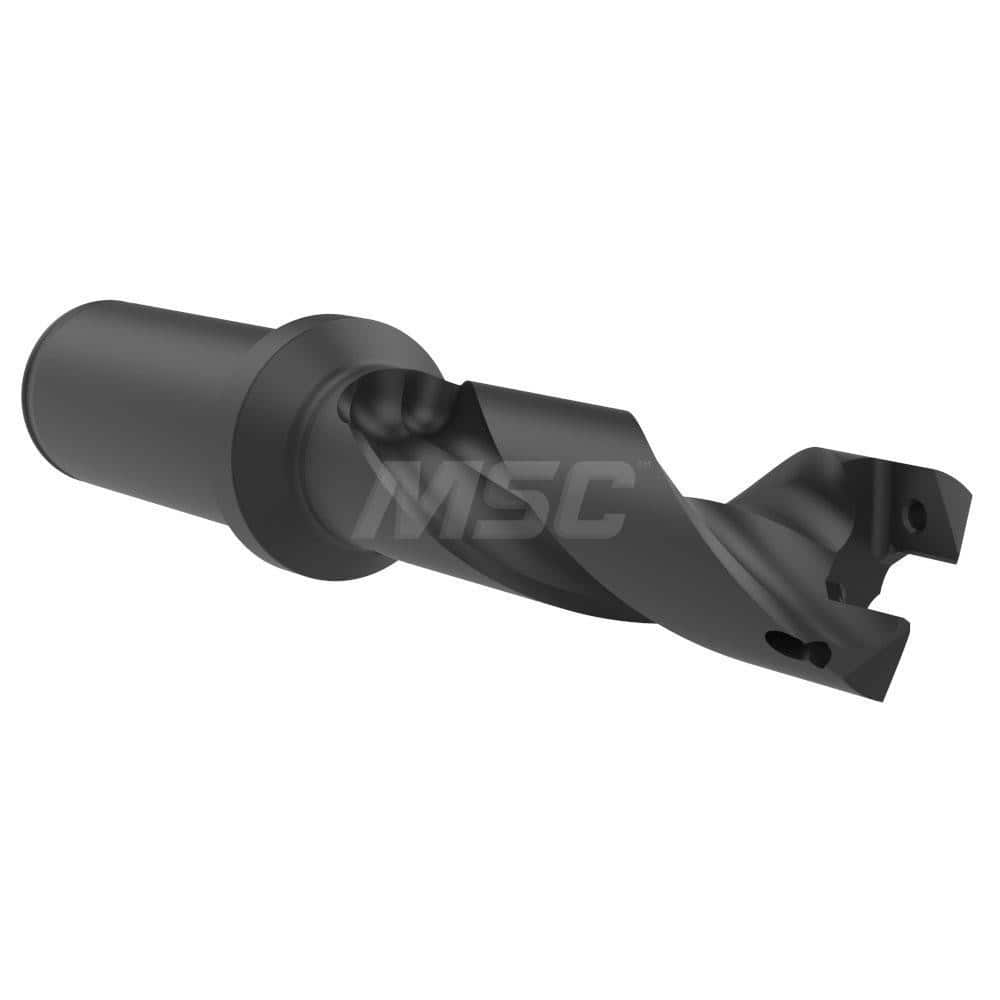

Indexable Spade Drill: 4.1406 to 2.281″ Dia, 2-53/64″ Max Depth, Helical Flute 1″ Shank Dia, Cylindrical Shank, 4-9/64″ Body Length, 4-9/64″ Flute Length, 6-27/64″ OAL, Through Coolant
Item #: 70203278
Brand: Allied Machine and Engineering
Model #: 60322H-100C
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 4.1406 |
| Maximum Drill Diameter (Decimal Inch) | 2.2810 |
| Maximum Drill Depth (Inch) | 2-53/64 |
| Maximum Drill Depth (Decimal Inch) | 2.8280 |
| Spade Drill Length | Standard |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Depth by Diameter Ratio | 3xD |
| Overall Length (Inch) | 6-27/64 |
| Flute Type | Helical |
| Flute Length (Decimal Inch) | 4.1406 |
| Flute Length (Inch) | 4-9/64 |
| Body Length | 4-9/64 |
| Body Length (Decimal Inch) | 4.1406 |
| Shank Length (Inch) | 2-9/32 |
| Shank Length (Decimal Inch) | 2.2810 |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Coolant Through | Yes |
