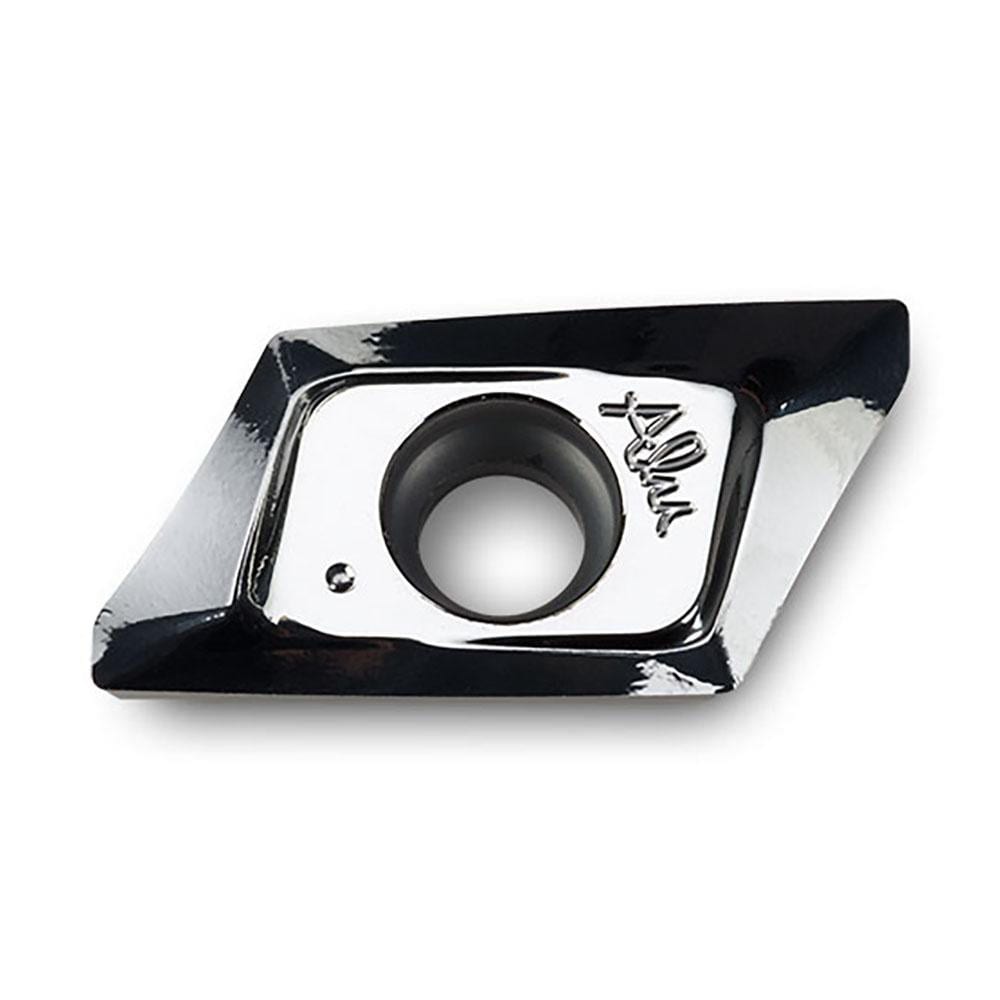

Milling Insert: XEVT160504FR-P IN10K IN10K, Solid Carbide
Item #: 49207947
Brand: Ingersoll Cutting Tools
Model #: 6120030
Product Specifications
| Insert Style | XEVT |
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN10K |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 20.00 |
| Insert Size Code | 160504 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.4410 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | XEVT |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.6300 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | XEVT160504FR-P IN10K |
| Iso Code | XEVT160504FR-P IN10K |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 6120030 |
| Cutter Series Compatibility | 1AX2K; AX2K |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.4410 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.8740 |
