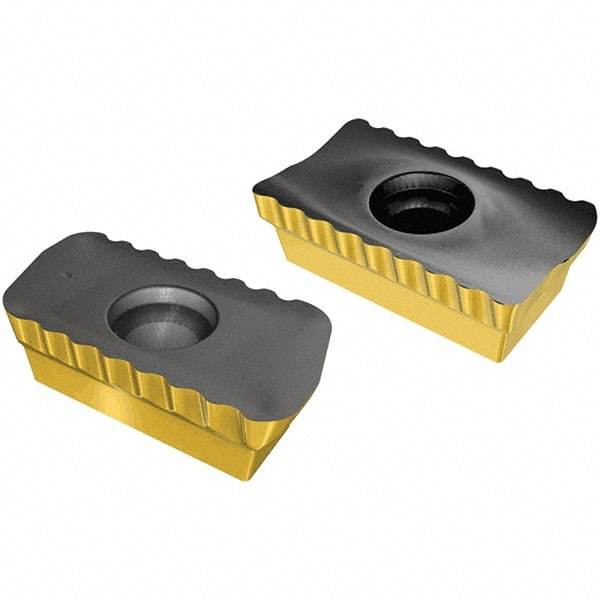

Iscar - P290 ACCT1806 HL Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.256" Thick, 0.79mm Corner Radius
Item #: 69867737
Brand: Iscar
Model #: 5668061
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACCT |
| Insert Size | 1806 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.4250 |
| Length (Decimal Inch) | 0.7640 |
| Thickness (Decimal Inch) | 0.2560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | HL |
| Manufacturers Catalog Number | P290 ACCT 1806PDR-HL |
