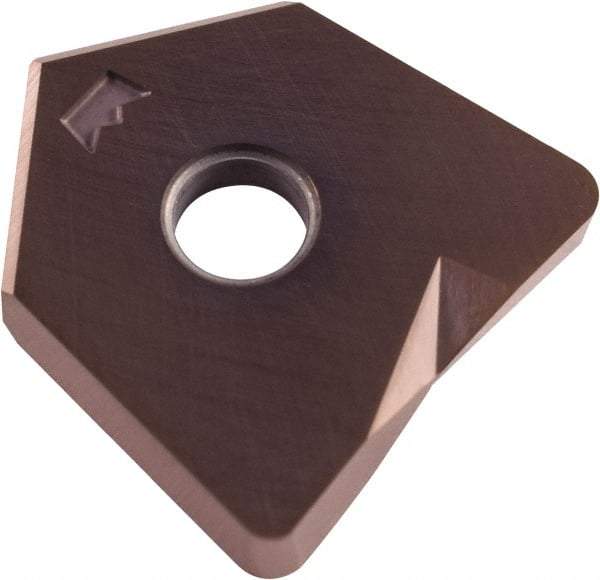

Millstar - BD-N0375 None Grade CM043 Carbide Milling Insert - HSN Finish, 0.1" Thick, 3/8" Inscribed Circle, 1/16" Corner Radius
Item #: 69638781
Brand: Millstar
Model #: BD0375N04HSN
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BD-N |
| Insert Size | 0375 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM043 |
| Coating | HSN |
| Width (Inch) | 3/8 |
| Length (Decimal Inch) | 0.3570 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1000 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | CBCYF; CYF |
