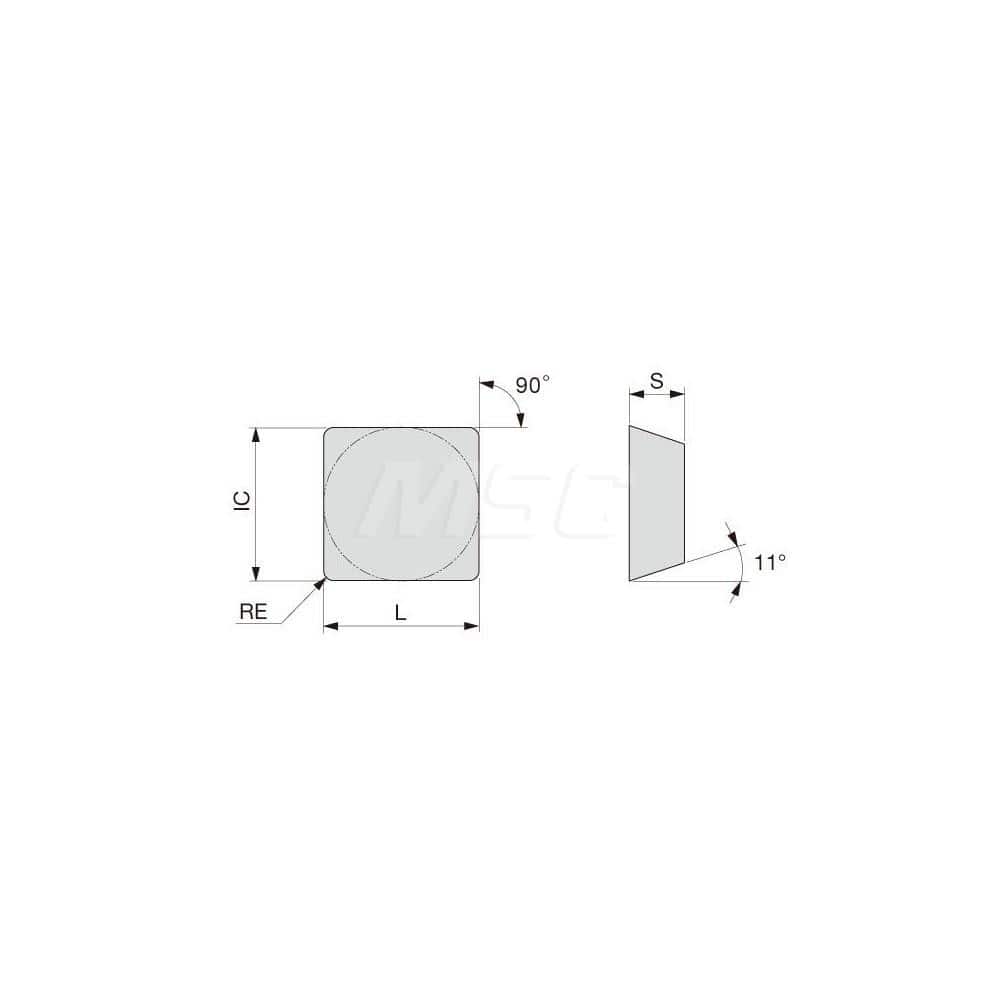

Turning Insert: SPGN422 TH10, Solid Carbide Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 90.0 ° N/A Square, Series SPGN
Item #: 69456382
Brand: Tungaloy
Model #: 6807067
Product Specifications
| Insert Style | SPGN |
| Insert Size Code | 422 |
| Insert Shape | Square |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 90.0 |
| Relief Angle | 11 |
| Series | SPGN |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | SPGN422TH10 |
| Iso Code | SPG422 TH10 |
| Chip Breaker | FT |
| Coating/Finish | Uncoated |
